Weight | 0,014 kg |
---|---|
Dimensions | 82 × 13 × 13 mm |
Milling Material | Graphite |
Coating Type (CT) | |
Cutting Diameter (CD) | 0.3mm |
Cutting Geometry | Ball-Nosed |
Flutes | 2 |
Shank Diameter (SD) | 4mm |
Flute Length (FL) | 0.5mm |
Reach Length (RL) | 1.5mm |
Overall Length (OL) | 40mm |
Neck Diameter (ND) | 0.25mm |
Remeasured to 1 Micron | No |
Sample Box | no |

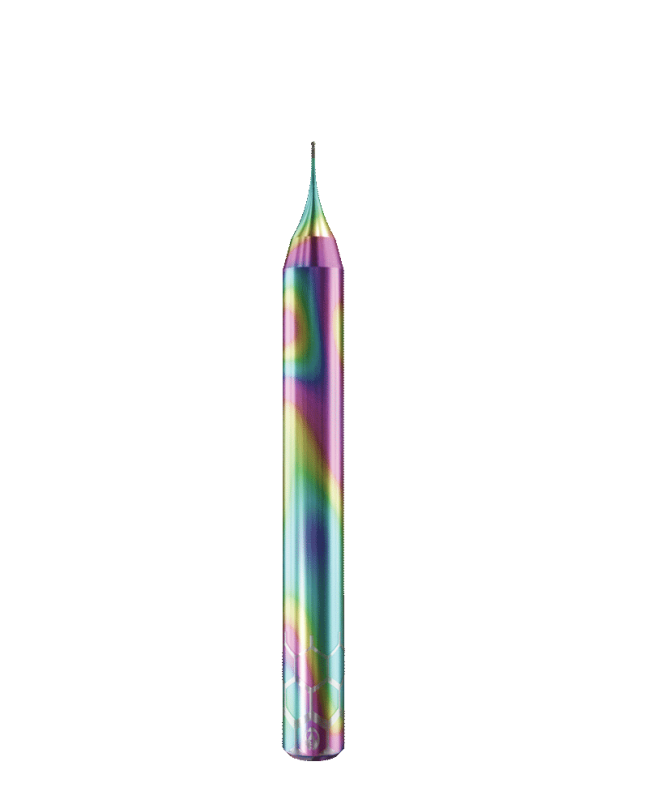

GT.DIA.B2.03.4.015.40.X
0.3mm 2-Flute Ball Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Shaft Diameter of 4mm.
HS Code: 82077010
In stock (can be backordered)
