DUAL-USE
GT.DIA.T3.08.4.080.50.G.INV*

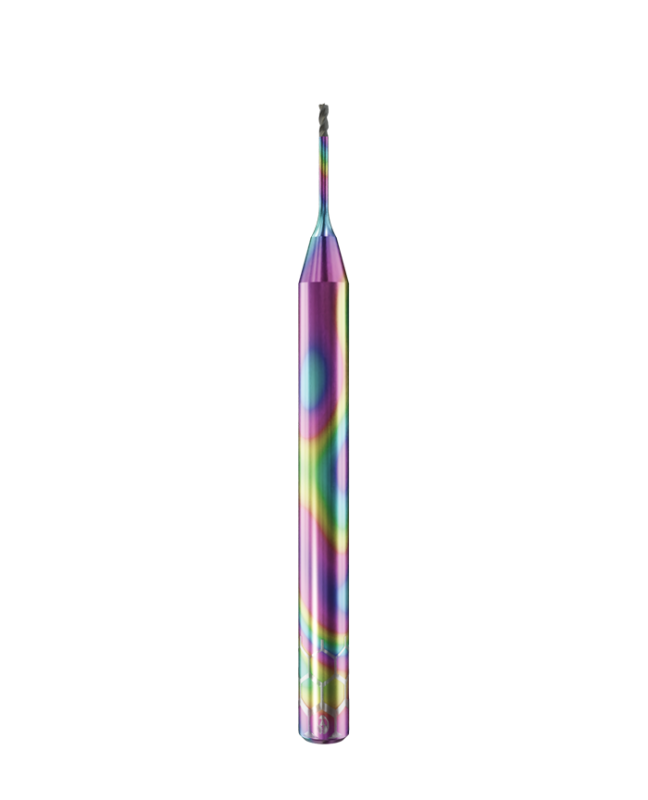

0.8mm 3-Flute Corner Radius (Toric, Bull-Nosed) Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Reach: 8.0mm Radius: 0.10mm Shaft: 4mm.
Invader Series: Rough+Finish Design
With Measurement Protocol
0.8mm 3-Flute Torus Carbide End Mill for Graphite
FLATCOAT® DIA Coating, Shaft Diameter of 4mm.
HS Code: 82077010
Invader Series: DUAL-USE VERSION
Remeasured to 1 Micron
Original price was: €109,99.€91,30Current price is: €91,30.
EU Warehouse Inventory: On Backorder (1-2 business days)
Milling Material
Carbon, Ceramics, Fiber Reinforced Material, Graphite
Coating Type (CT)
FLATCOAT® DIA Multilayer Diamond Coating
Cutting Geometry
Toric (Bull-Nosed)
Flutes
3
Flute Length (FL)
1.60mm
Cutting Diameter (CD)
0.8mm
Corner Radius
0.10mm
Shank Diameter (SD)
4mm
Reach Length (RL)
8.0mm
Neck Diameter (ND)
0.72mm
Overall Length (OL)
50mm
Special Series
The Invader Series, The Invader Series - Dual-Use Version
Remeasured to 1 Micron
Yes
Sample Box
no
Calculator coming soon.
