ZT.DIA.B2.10.4.150.50.X.R1

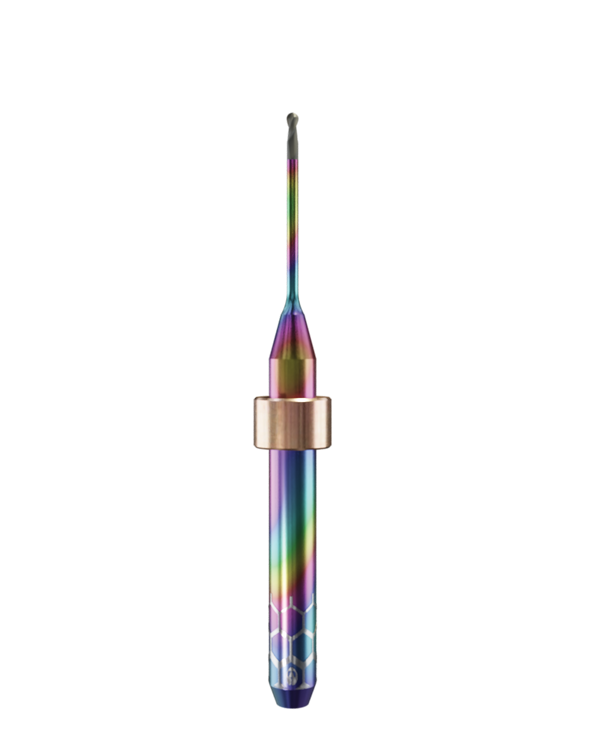

1mm 2-Flute Ball Carbide Milling Bur for Zirconia
FLATCOAT® DIA Coating, Shaft Diameter of 4mm, Brass Ring (25mm from Shaft End).
HS Code: 82077010
Original AlienTools Article Number: ZT.DIA.10.4.15.50.R1
In stock (can be backordered)
ADD TO A COMPARISON TABLE| Weight | 0,014 kg |
|---|---|
| Dimensions | 82 × 13 × 13 mm |
| Coating Type (CT) | FLATCOAT® DIA Multilayer Diamond Coating |
| Shank Diameter (SD) | 4mm |
| Cutting Diameter (CD) | 1.0mm |
| Overall Length (OL) | 50mm |
| Reach Length (RL) | 15mm |
| Flute Length (FL) | 2.0mm |
| Neck Diameter (ND) | 0.95mm |
| Ring Type | Brass Ring |
| Machine Model | Yenadent* |
| Milling Material | Sinter-Metal, Zr |
| Cutting Geometry | Ball-Nosed |
| Tool Indication | Finishing |
| Flutes | 2 |
| Sample Box | no |
